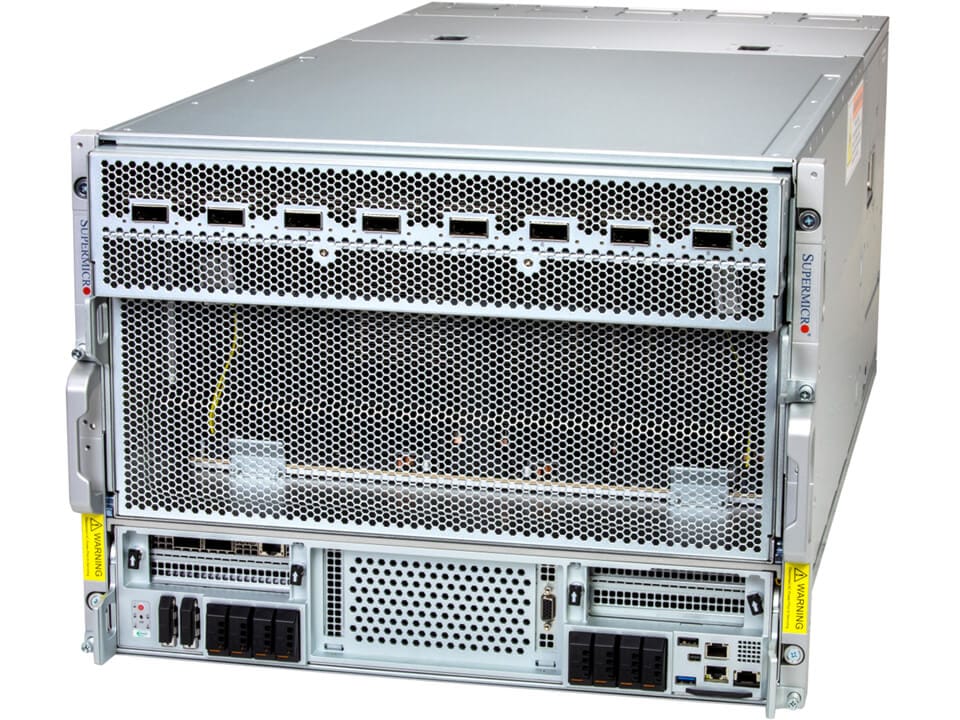

Supermicro SuperServer AS-8126GS-NB3RT HGX B300 NVL8 270GB Air-Cooled (8) AMD Turin (2) AI Graphics Card GPU Server

$1,999,000.00

Supermicro SuperServer AS-8126GS-NB3RT HGX B300 NVL8 270GB Air-Cooled (8) AMD Turin (2) AI Graphics Card GPU Server

$1,999,000.00

Supermicro Gold Series AS -8126GS-NB3RT | 8U GPU Server

DP AMD 8U System with NVIDIA HGX B300 8-GPU

Key Applications

Scientific Research
Conversational AI
Business Intelligence & Analytics
Drug Discovery
Finance Services and Fraud Detection
AI/Deep Learning Training and Inference
Large Language Model (LLM) and Generative AI
High Performance Computing (HPC)
Autonomous Vehicle Technologies

Key Features

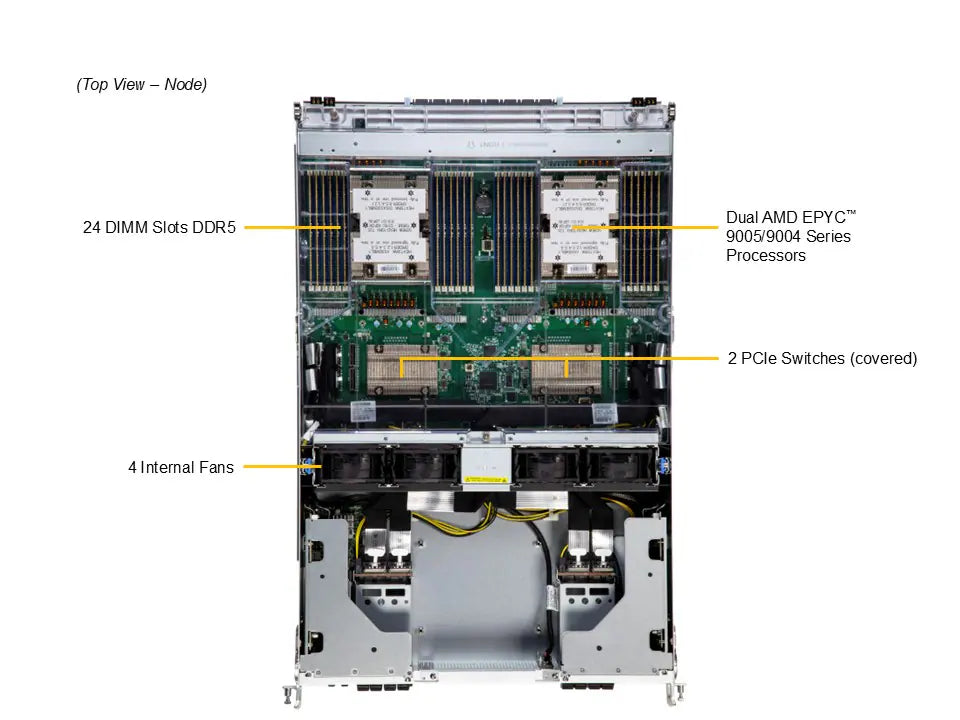

Dual AMD EPYC™ 9005/9004 Series Processors
NVIDIA HGX B300 8-GPU with 5th Generation NVLink® 1.8TB/s, 2.3TB of HBM3e GPU memory per system
24 DIMMs, with up to 6TB at 6400MT/s DDR5 memory
(Please check System Memory Section for detail)

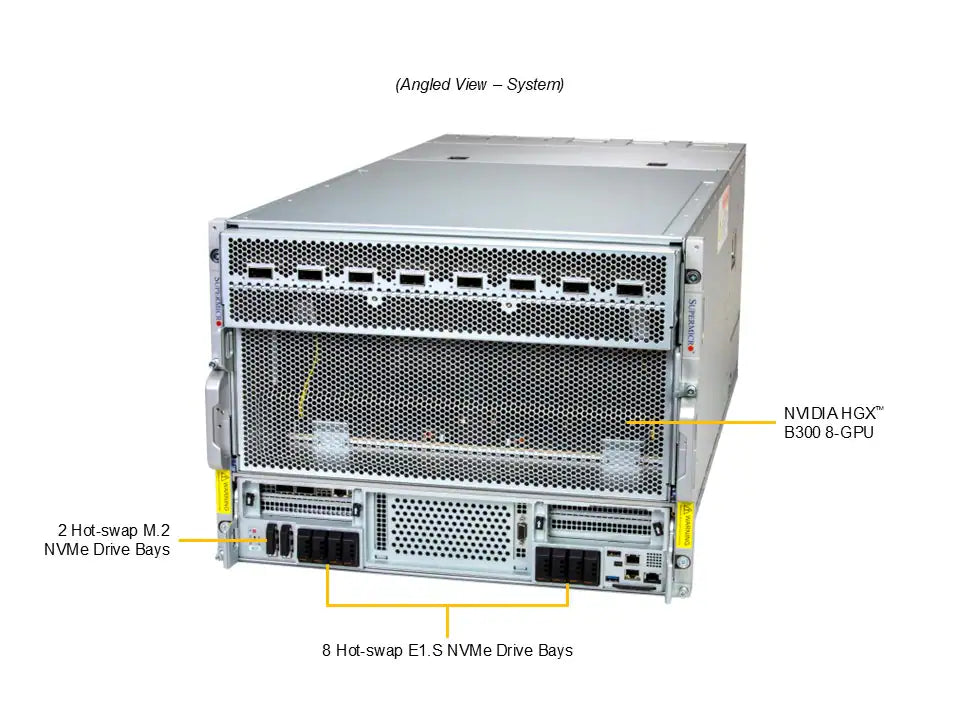

8 Hot-swap E1.S NVMe storage drive bays and 2 M.2 NVMe boot drives
8 NVIDIA ConnectX®-8 SuperNICs, up to 800Gb/s, up to two dual-port NVIDIA BlueField®-3 DPUs
6x 6600W Redundant (3 + 3) Titanium Level (96%) power supplies
(Power supply full redundancy based on configuration and application load)

Product SKUs
AS -8126GS-NB3RT
AS -8126GS-NB3RT-01-G2 Gold Series version with pre-configured components

Motherboard
Super H14DSG-OM

Processor
CPU	Dual processor(s) AMD EPYC™ 9005/9004 Series Processors
Core Count	Up to 384C/768T
Note	Supports up to 500W TDP CPUs

GPU
Max GPU Count	8 onboard GPUs
Supported GPU	NVIDIA SXM: HGX B300 8-GPU (288GB) View GPU Options
GPU-GPU Interconnect	NVIDIA® NVLink™ with NVSwitch™

System Memory
Memory	Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor) View Memory Options
Memory Voltage	1.1V

On-Board Devices

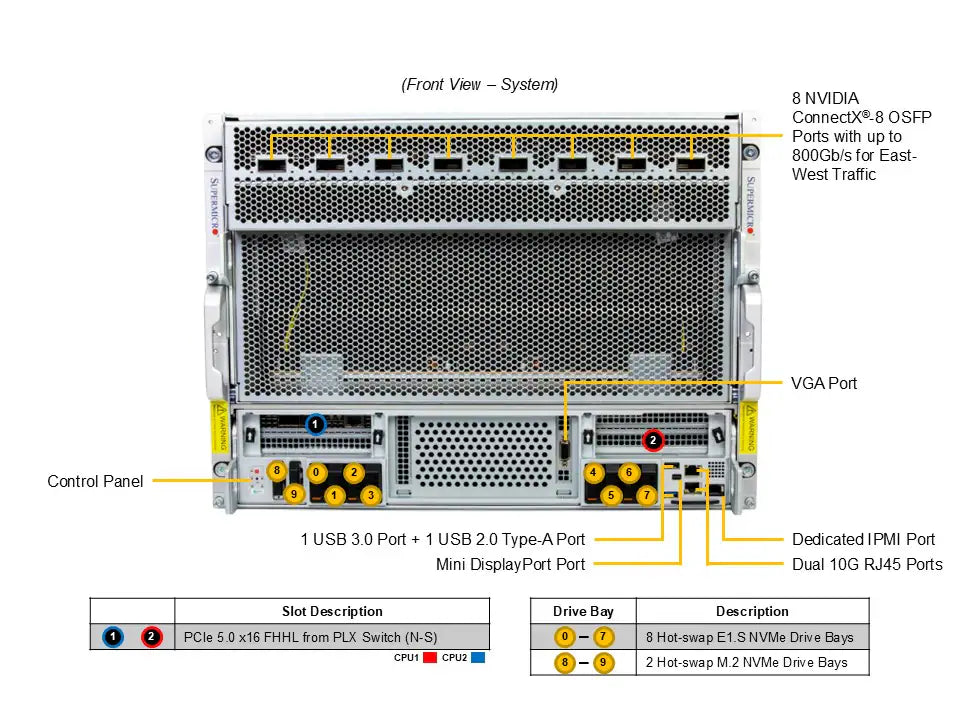

Network Connectivity	8 OSFP 800GbE 2 RJ45 10GbE View AOC Options

Input / Output
USB	1 USB 3.0 Type-A port(Front) 1 USB 2.0 Type-A port(Front)
Video	1 VGA port 1 mini-DP port

System BIOS
BIOS Type	AMI 64MB UEFI

Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

PC Health Monitoring
CPU	8+4 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	8U Rackmount
Model	CSE-GP807TS-R000NP

Dimensions and Weight
Height	13.8″ (356 mm)
Width	17.6″ (449 mm)
Depth	37.4″ (950 mm)
Package	26.38″ (H) x 28.74″ (W) x 50.39″ (D)
Weight	Gross Weight: 302 lbs (137 kg) Net Weight: 263 lbs (119 kg)
Available Color	Silver

Front Panel
Buttons	Power On/Off UID
LED	HDD activity LAN1 activity LAN2 activity Power Fail Power status System information (overheat/UID)

Expansion Slots
PCI-Express (PCIe) Configuration	Default 2 PCIe 5.0 x16 FHHL slots View AOC Options

Drive Bays / Storage
Drive Bays Configuration	Default: Total 8 bays 8 front hot-swap E1.S NVMe drive bays View NVMe Options
M.2	2 M.2 NVMe slots (M-key) View M.2 Options

System Cooling
Fans	Up to 12 heavy duty fans with optimal fan speed control

Power Supply

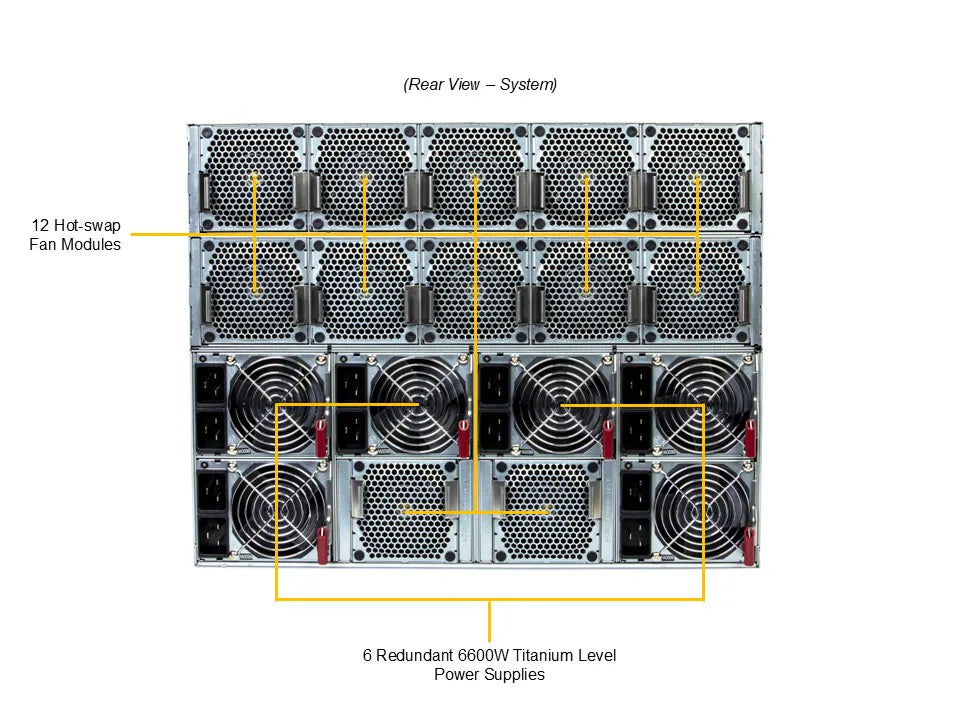

6x 6600W Redundant (3 + 3) Titanium Level (96%) power supplies

Dimension (WxHxL)	106.5 x 82.1 x 245.3 mm
Input	5900W: 200-207.9Vac / 50-60Hz 6000W: 208-219.9Vac / 50-60Hz 6300W: 220-229.9Vac / 50-60Hz 6500W: 230-238.9Vac / 50-60Hz 6600W: 239-240Vac / 50-60Hz
+12V	Max: 130A / Min: 0A (200Vac-207.9Vac) Max: 130A / Min: 0A (208Vac-219.9Vac) Max: 130A / Min: 0A (220Vac-229.9Vac) Max: 130A / Min: 0A (230Vac-238.9Vac) Max: 130A / Min: 0A (239Vac-240Vac)
12V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]

Operating Environment
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
