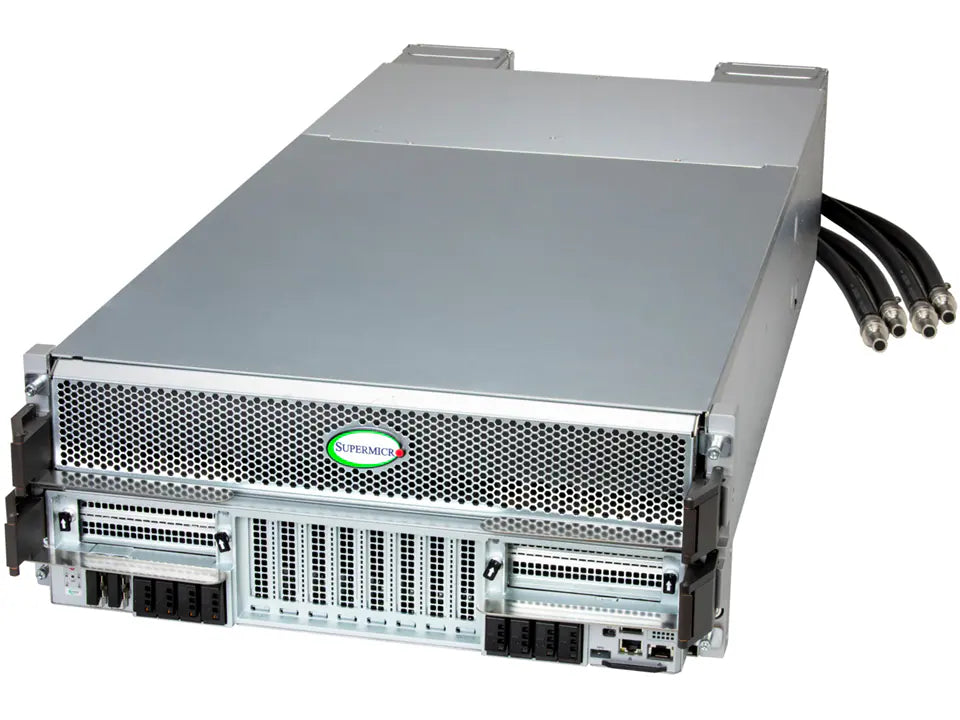

Supermicro SuperServer SYS-422GS-NB3RT-LCC HGX B300 NVL8 270GB Partner-Cooled (8) Intel Granite Rapids SP (2) AI Graphics Card GPU Server

$1,999,000.00

Supermicro SuperServer SYS-422GS-NB3RT-LCC HGX B300 NVL8 270GB Partner-Cooled (8) Intel Granite Rapids SP (2) AI Graphics Card GPU Server

$1,999,000.00

Supermicro SYS-422GS-NBRT-LCC | 4U GPU Server

DP Intel 4U Liquid-Cooled System with NVIDIA HGX B200 8-GPU (complete rack and onsite service are required)

Key Applications

AI/Deep Learning Training
Artificial Intelligence
Deep Learning Inferencing
LLMs & Multi-modal LLMs

Key Features

Complete liquid-cooled rack integration is required for purchase
DLC supporting up to 87% of heat capture via cold plates (with max config)
Dual Intel® Xeon® 6700 series processors with P-cores
8x Nvidia B200 GPUs, 1.44TB of GPU memory space
32x DIMMs slots, RDIMM ECC DDR5
8x PCIe 5.0 x16 LP + 2x PCIe 5.0 x16 FHHL slots

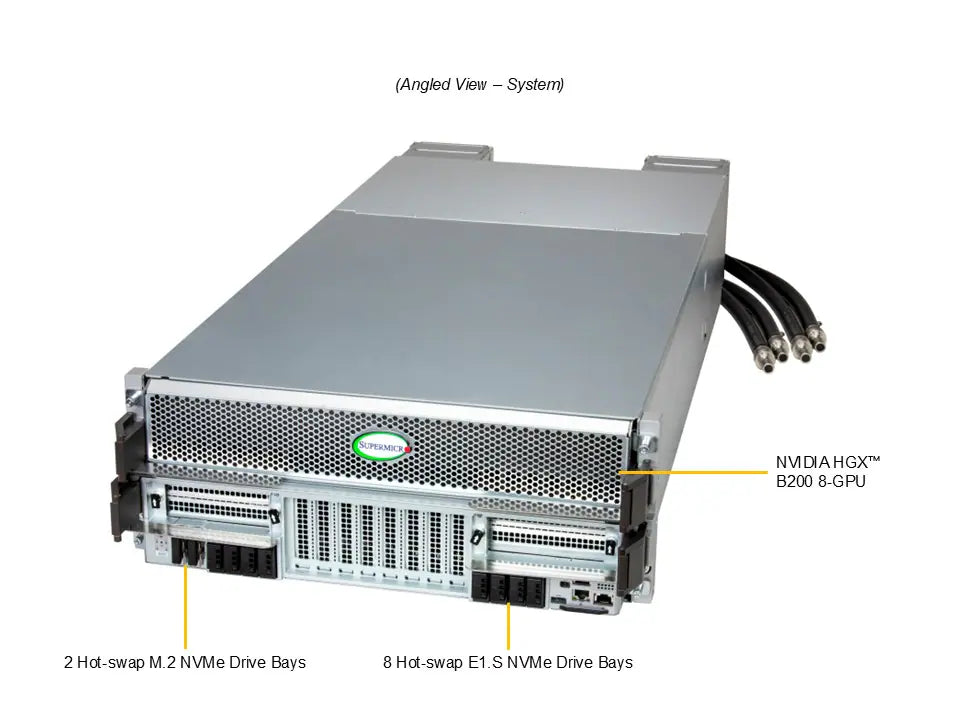

8x front hot-swap E1.S + 2x M.2 NVMe drive bays
2x 10GbE, 1x Dedicated BMC/IPMI
4x Redundant 6600W Titanium Level power supplies

Product SKUs
SYS-422GS-NBRT-LCC

Motherboard
Super X14DBG-LC

Processor
CPU	Dual Socket E2 (LGA-4710) Intel® Xeon® 6700 series processors with P-cores
Core Count	Up to 86C/172T; Up to 336MB Cache per CPU
Note	Supports up to 350W TDP CPUs (Liquid Cooled)

GPU
Max GPU Count	8 onboard GPUs
Supported GPU	NVIDIA SXM: HGX B200 8-GPU (180GB) View GPU Options
GPU-GPU Interconnect	NVIDIA® NVLink™ with NVSwitch™

System Memory
Memory	Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 5200MT/s ECC DDR5 RDIMM View Memory Options
Memory Voltage	1.1V

On-Board Devices
Network Connectivity	2 RJ45 10GbE with Intel® X710-AT2 View AOC Options

Input / Output
LAN	2 RJ45 10 GbE LAN ports (Intel® X710)
USB	1 USB 3.0 Type-A port(Front) 1 USB 2.0 Type-A port(Front)
Video	1 VGA port(Front) 1 Mini-DP port(Front)
TPM	1 TPM header

System BIOS
BIOS Type	AMI 64MB UEFI

Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

PC Health Monitoring
CPU	8+4 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	4U Rackmount
Model	CSE-GP405TS-R000NP

Dimensions and Weight
Height	6.85″ (174 mm)
Width	17.6″ (448 mm)
Depth	39.03″ (991.4 mm)
Package	16.14″ (H) x 31.29″ (W) x 54.92″ (D)
Weight	Gross Weight: 222 lbs (101 kg) Net Weight: 187 lbs (85 kg)
Available Color	Silver

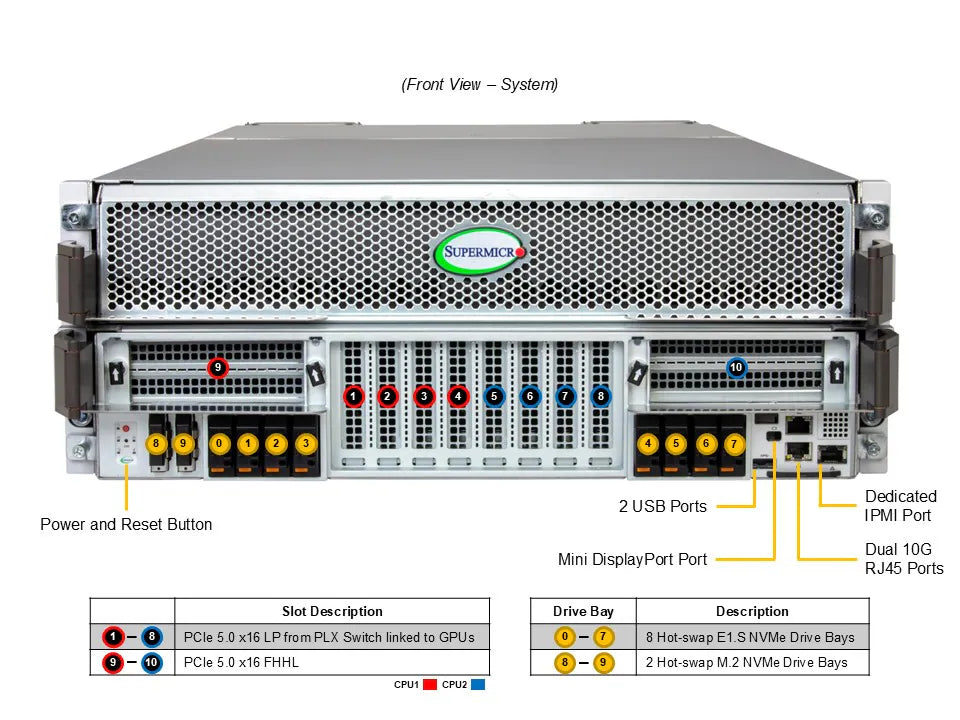

Front Panel
Buttons	Power On/Off UID
LED	HDD activity LAN1 activity LAN2 activity Power Fail Power status System information (overheat/UID)

Expansion Slots
PCI-Express (PCIe) Configuration	Default 2 PCIe 5.0 x16 FHHL slots 8 PCIe 5.0 x16 LP slots View AOC Options

Drive Bays / Storage
Drive Bays Configuration	Default: Total 8 bays 8 front hot-swap E1.S NVMe drive bays
M.2	2 M.2 NVMe slots (M-key; RAID support via S3808N controller) View M.2 Options

System Cooling
Fans	4x 80mm Fan(s)
Liquid Cooling	Direct to Chip (D2C) Cold Plate

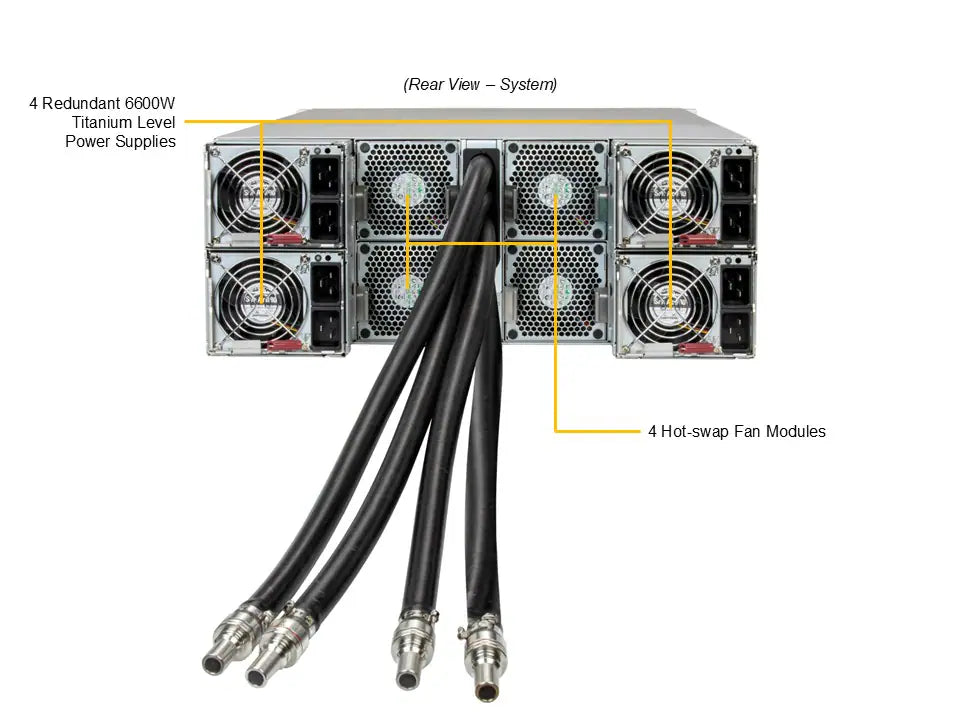

Power Supply

4x 6600W Redundant (2 + 2) Titanium Level (96%) Hot-plug power supplies

Dimension (WxHxL)	106.5 x 82.1 x 245.3 mm
Input	5900W: 200-207.9Vac / 50-60Hz 6000W: 208-219.9Vac / 50-60Hz 6300W: 220-229.9Vac / 50-60Hz 6500W: 230-238.9Vac / 50-60Hz 6600W: 239-240Vac / 50-60Hz
+12V	Max: 130A / Min: 0A (200Vac-207.9Vac) Max: 130A / Min: 0A (208Vac-219.9Vac) Max: 130A / Min: 0A (220Vac-229.9Vac) Max: 130A / Min: 0A (230Vac-238.9Vac) Max: 130A / Min: 0A (239Vac-240Vac)
12V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]

Operating Environment
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
